Tungsten Sheet Customizable Size from getwick
Tungsten Sheet Customizable Size from getwick
Tungsten Sheet Customizable Size from getwick
Tungsten Sheet Customizable Size from getwick
Tungsten Sheet Customizable Size from getwick
Tungsten Sheet Customizable Size from getwick
Model
W1

Item specifics

Material
Tungsten
Purity
99.95% min.
Standard
ASTM B760
Grade
W1
Shape
tungsten sheet, tungsten plate
Working temperature
above 2000Dc
MOQ
1kg
Surface
black, chemical cleaning, polished
Feature
high temperature resistance
Products Name
GETWICK W1 New Product Tungsten Sheet/Plate Price

Review

Description

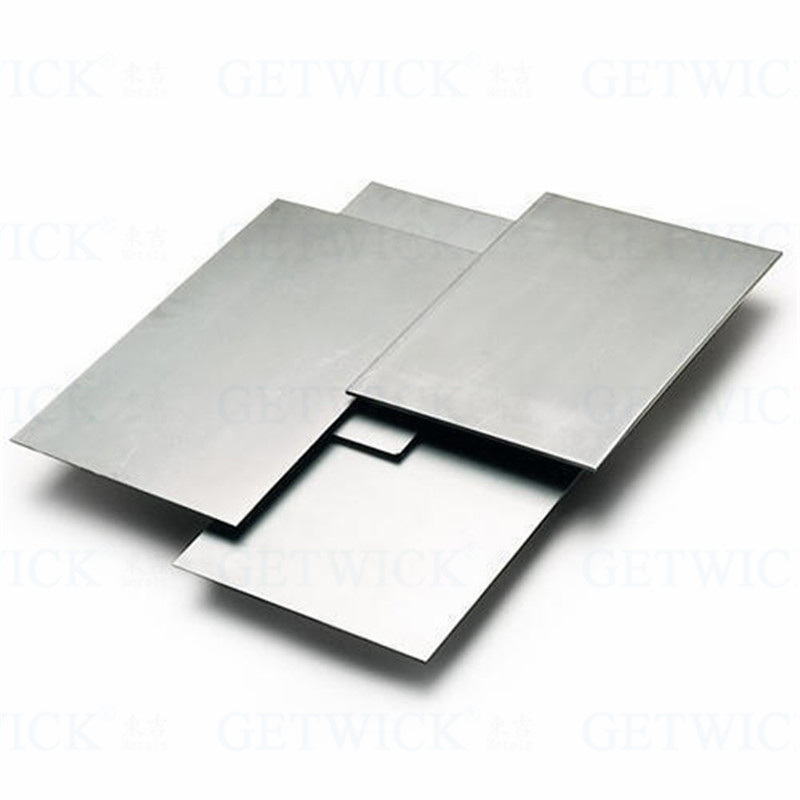

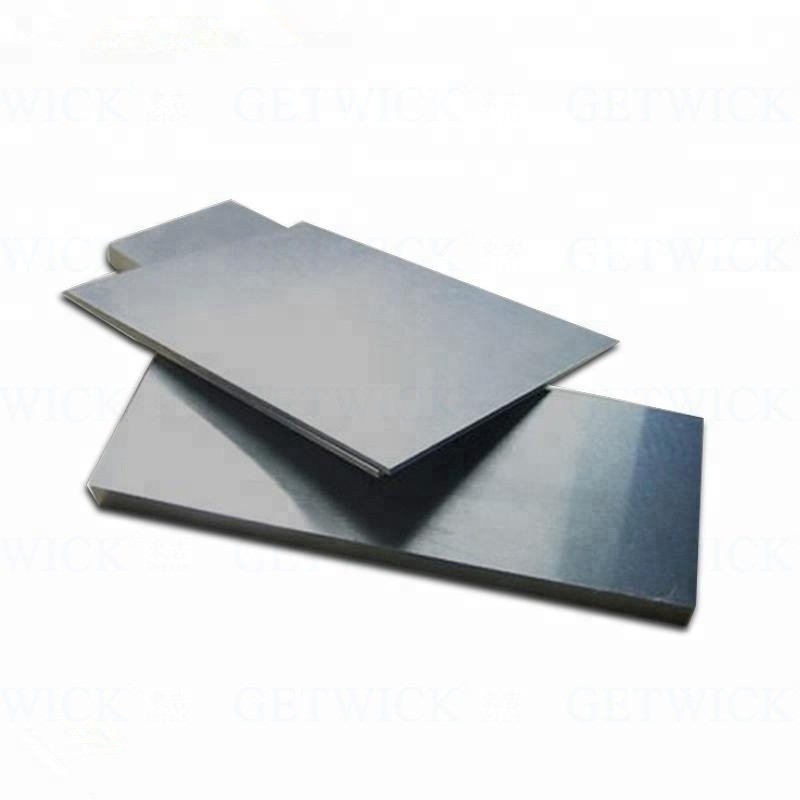

Tungsten Sheet Customizable Size from getwick

China factory supplier W1 W2 tungsten sheet for radiation shielding materials

1.Applications:
      *  For producing electric light source parts,components of electric vacuum;
      *  For producing W-boats,heat shield and heat bodies in high temperature furnace.

2.Size: 0.05mm min.( Thickness ) x 400mm max.( Width ) x 1000mm max.( Length )

3.Purity: 99.95%min.
4.Standard: ASTM B760 or  GB3875-83

5.ASTM B760 as follows:

Chemical    composition

element

Max

C

0.01

O

0.01

N

0.01

Fe

0.01

Ni

0.01

Si

0.01

6.Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.

Normal specification we can provide:

Tungsten Plate/Sheet /Foil

 Thickness(min) mm

       Width(max) mm

Length(max) mm

0.05

150

500

0.06~0.09

250

500

0.1

300

500

0.12

320

550

0.15

350

600

0.2~0.6

400

600

0.7~0.9

400

800

1~2

450

800

2~10

450

600

10~15

450

500

15~25

300

500

7.Our products is available in a wide range of forms including nut, screw ,ring ,wire, foil, sheet,strip, plate, tube, alloys according to Standard ASTM AMS ASME MIL DMS JIS GB, etc.

8.If you have any needing or question ,pls tell me and i would like you try my best to help u Looking forward to hearing from you.
